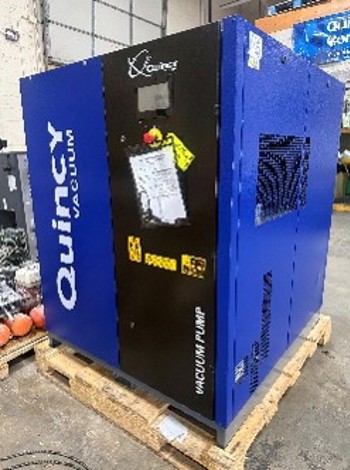

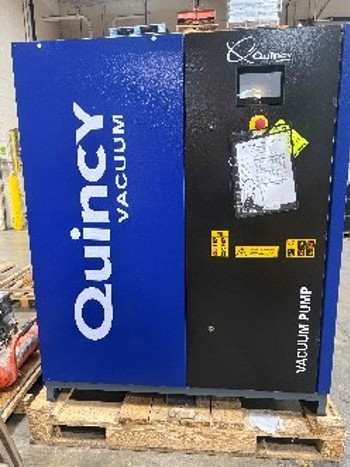

Quincy Rotary Screw Vacuum Pump- QSV-750E
Product Description
- Used 2023 Quincy QSV-750E variable speed, oil sealed rotary screw vacuum pump:
- Innovative oil injected screw airend with compression optimization valve
- High efficiency IE5 permanent magnet motor with premium variable speed driv

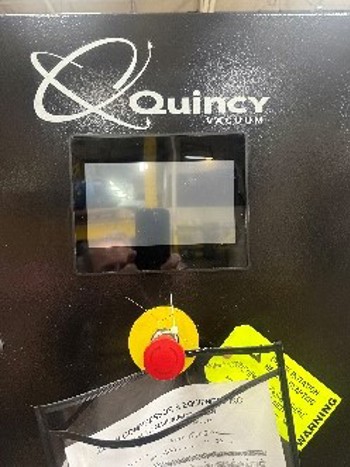

- Air Logic 3 Controller with 7-inch HMI touchscree
- Inlet isolation valv
- Cyclonic oil separation <1.5ppm oil carryover
- Full cabinet enclosure
- 131 Total Running Hour
- Electronic copy of instruction and parts manual is available
- Test run completed in our shop for full performance verification
Product Specifications
- Motor Size: 30 Horsepower
- Voltage: 460v3ph
- Maximum Vacuum Pressure: 29.9” HgV
- Maximum Displacement: 814 ACFM
- Maximum Noise Level: 74 dB(A)
- Inlet / Outlet Connection: 6” ANSI 150# Flange
- Dimensions: 58”L x 54”W x 66”H
- Approximate Weight: 2,636 Lbs.
- Year: 2023
- Reference Part #: 149-030-5405
